Patents in effect on this product
The above video shows the mobile work station. The toy box construction is identical but with
minor changes to accomodate the customers applications.

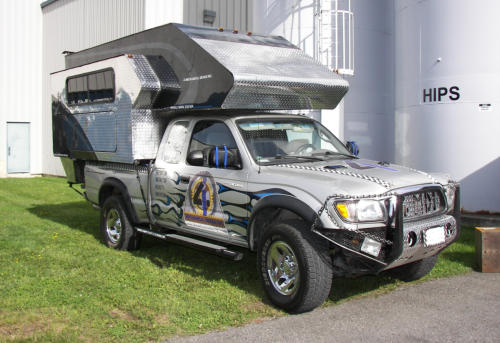

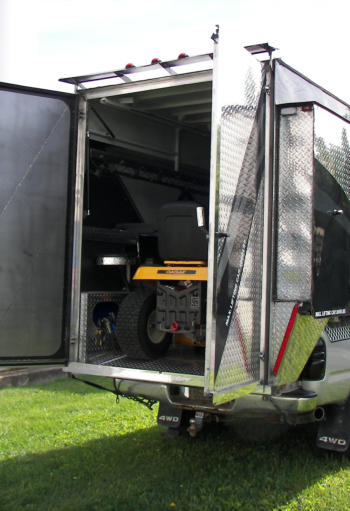

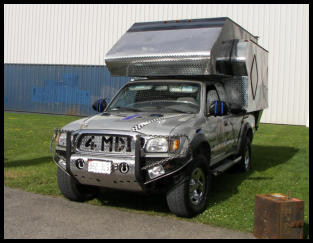

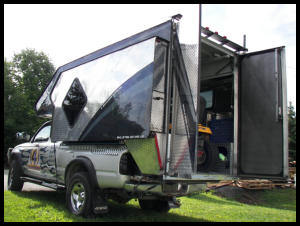

Some exterior photos. The rear doors
manually open horizontally, but while using
the hydraulic loading and unloading
system they open vertically. Styling and
layout can be designed to fit your needs.
There is a variety of window sizes, tints,
and styles, and the positioning and
orientation are also fairly unrestricted.
The top rear spoiler that you see is actually
an external door hinge that also serves as
an eaves-trough to prevent rain pouring
onto your cargo while the door is open
vertically (shown in the lower photo).

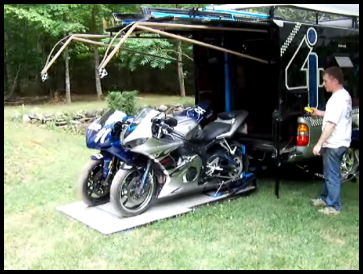

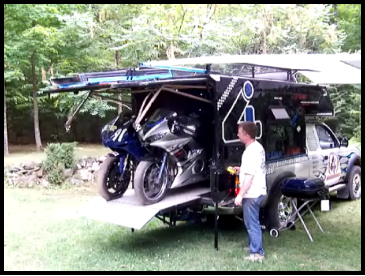

This is an older style of the Toy Box
loading two motorcycles. Our newer
design eliminates the door latching
arms seen overhanging the
motorcycles. The quick release wheel
chocks eliminate the need for straps,
allowing the motorcycles to be secured
closer together. Shown is a Toyota
Tacoma. A truck with a higher payload
capacity is recommended.

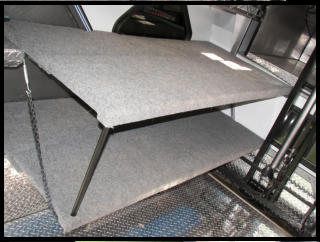

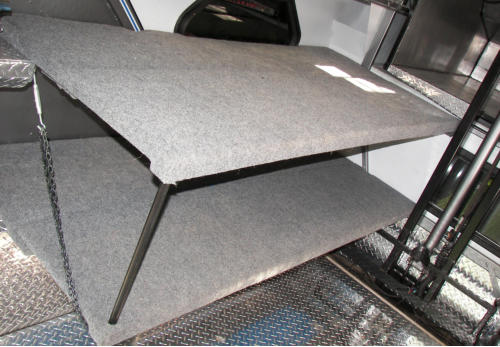

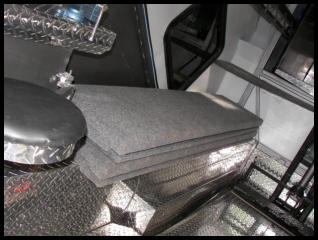

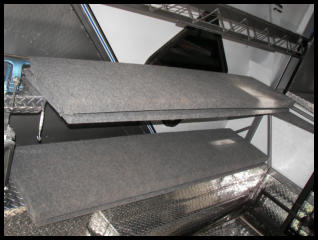

From top to bottom, these photos
illustrate the assembly of shelving units
from the stowed configuration. The
hydraulic loading system can be
operated with the shelving assembled,
although height restrictions may apply
to the upper shelf and the affected area
of the main cargo platform.

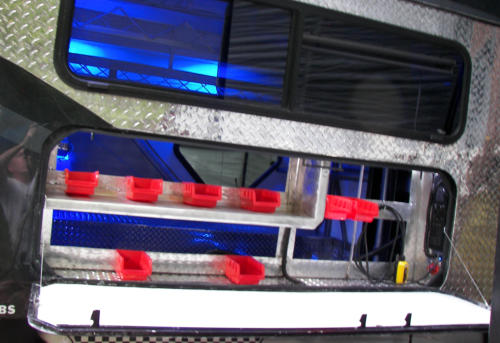

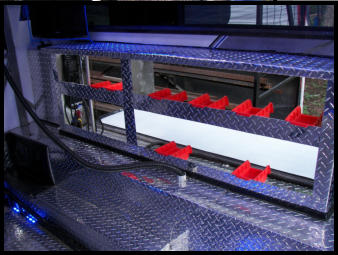

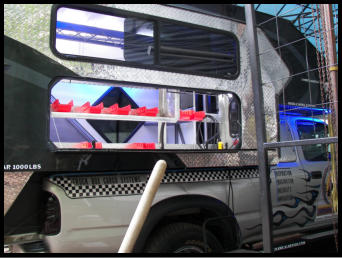

The side compartment shown can be
accessed from the inside or outside. It
is also illuminated by the activation of
dome-light switches on any of the
doors. A bin system can also be
provided to contain smaller items. This
lockable compartment also secures
the hydraulics remote control and
activation switch to prevent unwanted
tampering.
We add as many storage
compartments as we can to maximize
available cargo space.

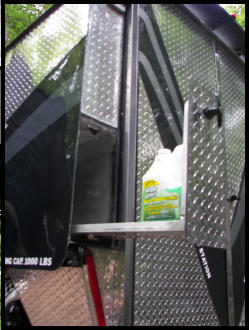

The lower photo is a lockable liquid
storage drawer to prevent containers
from toppling. It is also isolated from
the main interior to prevent fumes
entering. This has not yet been tested
to use as a flammable storage area.
Use at your own risk with flammable
liquids.
The storage compartments can be
illuminated by the activation of dome-
light switches on all doors.

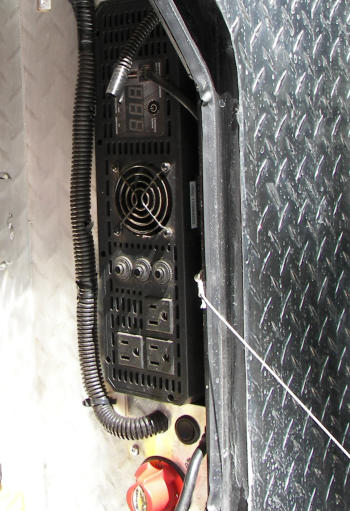

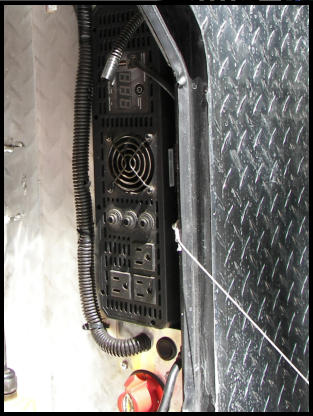

This is a 12 V DC to 120 V AC inverter
that can be installed. This one shown is
3000 Watts. Extra RV batteries can also
be installed. The red selector switch
below allows you to isolate the trucks
battery from the system to prevent it from
being drained when using power tools.
Or, for extra power, the truck battery can
be added into the system with the truck
running to take advantage of all batteries
and alternator.

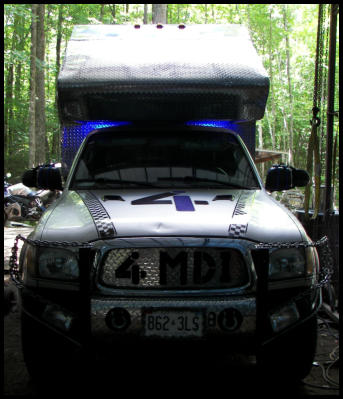

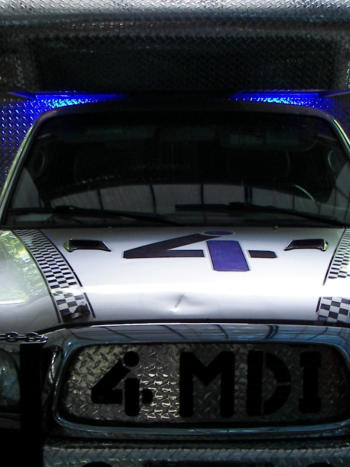

As a safety feature, the hydraulics remote
control requires operator activation before
using. This prevents accidental tampering
of the remote control. Activation is
indicated by the blue light effects that can
be seen from the front, in the rear-view
mirrors, as well as from the rear corners of
the vehicle.

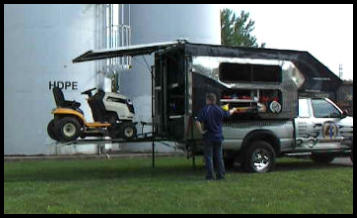

Lawn tractors, ATV’s, motorcycles,
snowmobiles, anything under 1000lbs that
can fit.

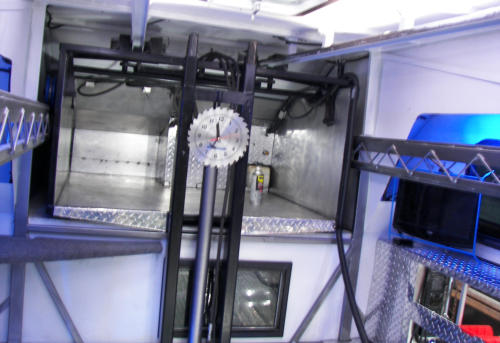

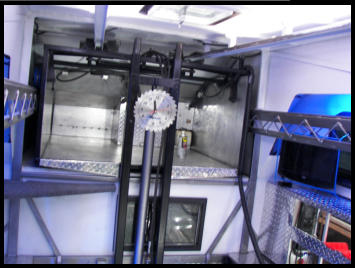

This photo shows the over cab storage
area, and in the far background, the
hydraulic power-pack and valving system
compartment.
You will also see a TV mounted to the
right with a surrounding protective frame
(in blue) to protect it from passing
obstacles. If you provide a small
lightweight TV, we can provide adjustable
TV mounting features in your Toy Box.
