Patents in effect on this product

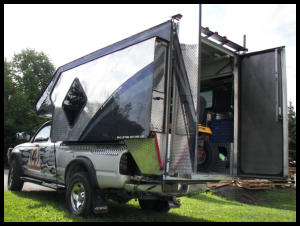

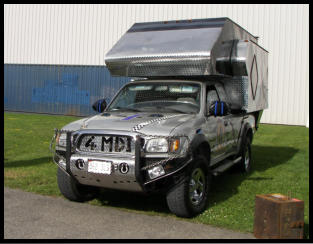

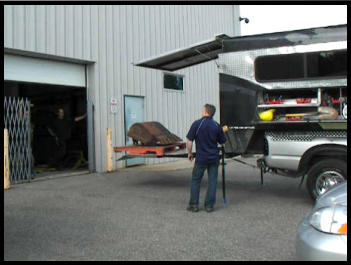

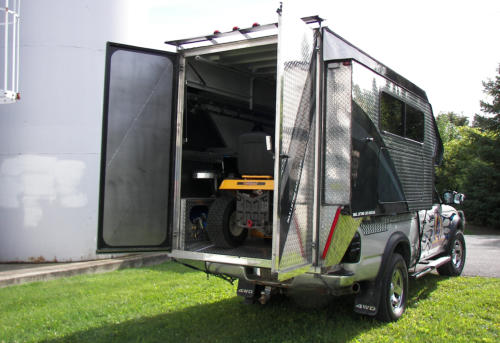

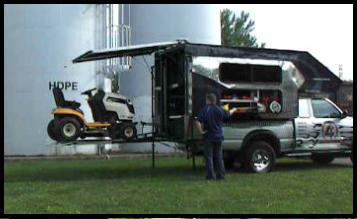

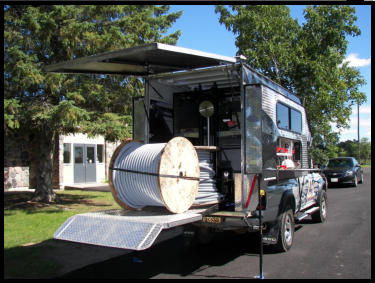

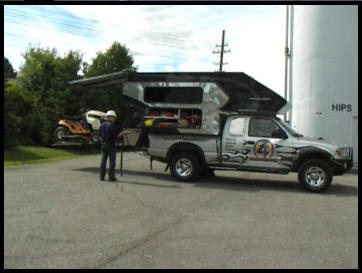

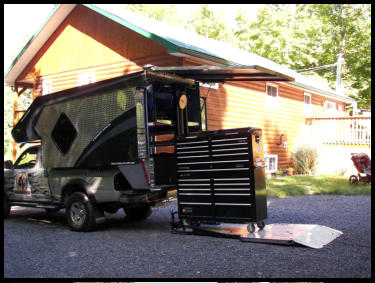

Some exterior photos. The rear
doors manually open horizontally,
but while using the hydraulic
loading and unloading system,
they open vertically. Styling and
layout can be designed to fit your
needs. There is a variety of
window sizes, tints, and styles,
and the positioning and
orientation are also fairly
unrestricted.
The top rear spoiler that you see
is actually an external door hinge
that also serves as an eaves-
trough to prevent rain pouring
onto your cargo while the door is
open vertically (shown in the
lower photo).

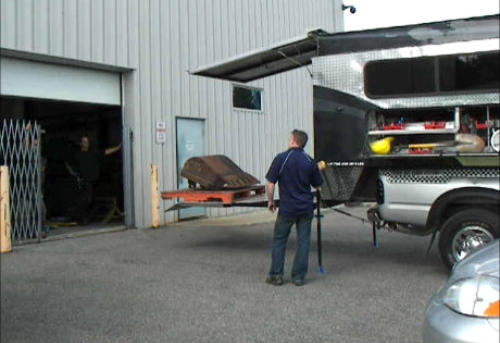

The applications of the mobile
work station are very diverse. The
design can be customized to
accommodate many applications.
Whether you are a self employed
contractor or a large corporation
seeking to improve safety,
efficiency, and security for your
equipment, we can build a unit
that suits your needs.

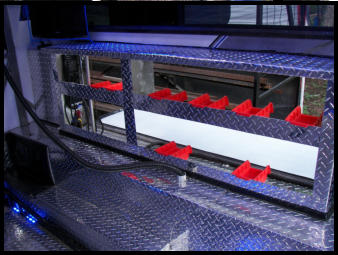

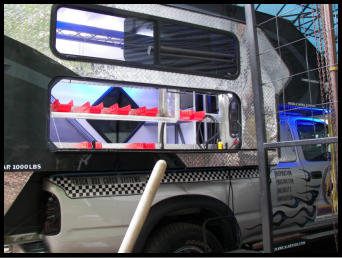

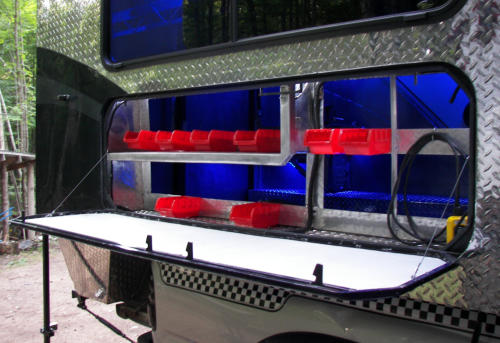

The side compartment shown can
be accessed from the inside or
outside. It is also illuminated by the
activation of dome-light switches
on any of the doors. A bin system
can also be provided to contain
smaller items. This lockable
compartment also secures the
hydraulics remote control and
activation switch to prevent
unwanted tampering.

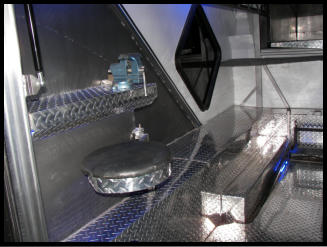

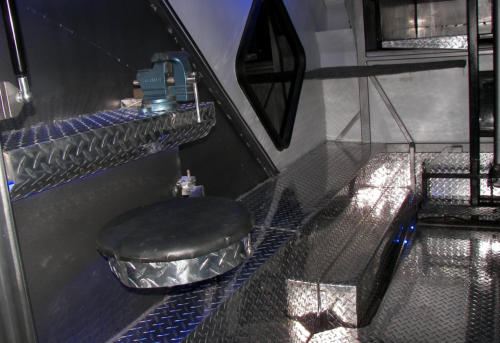

This unit has a built in work
bench where a vice and/or other
equipment can be bolted. There
is also a swing out stool. The
bench can be built to any height
or length.

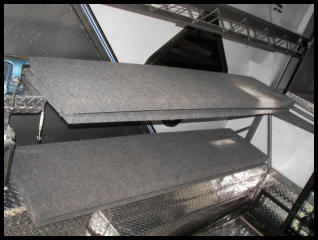

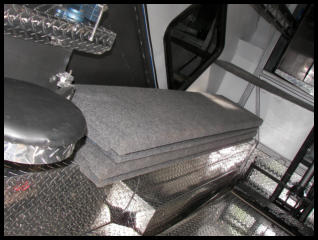

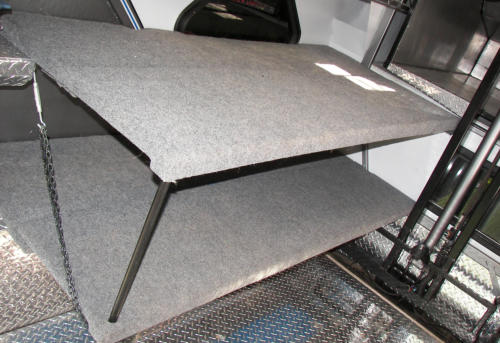

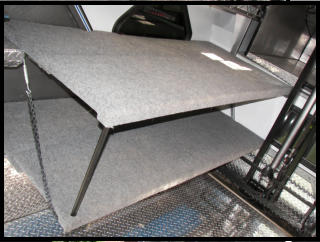

From top to bottom, these photos
illustrate the assembly of shelving
units from the stowed
configuration. The hydraulic
loading system can be operated
with the shelving assembled,
although height restrictions may
apply to the upper shelf and the
affected area of the main cargo
platform.

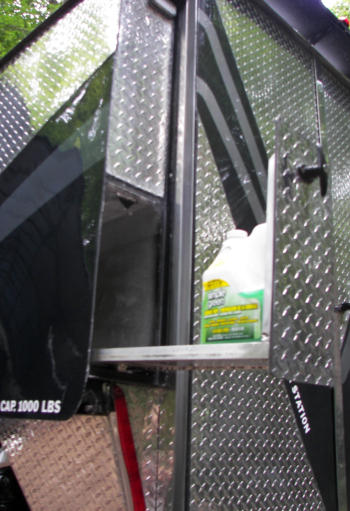

We add as many storage
compartments as we can to
maximize as much of the
available cargo space. The
lower photo is a lockable liquid
storage drawer to prevent
containers from toppling. It is
also isolated from the main
interior to prevent fumes
entering. This has not yet been
tested to use as a flammable
storage area. Use at your own
risk with flammable liquids. The
storage compartments can be
lit by the activation of dome-
light switches on all doors.

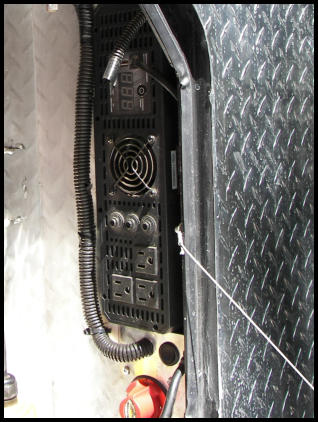

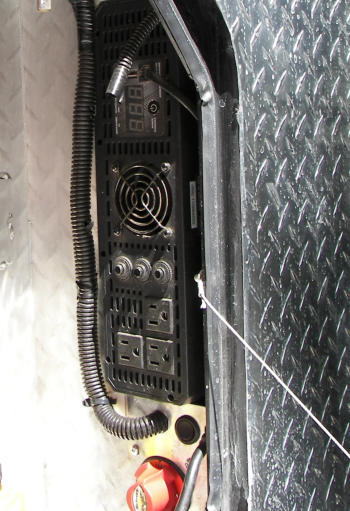

This is a 12 V DC to 120 V AC
inverter that can be installed.
This one shown is 3000 Watts.
Extra RV batteries can also be
installed. The red selector switch
below allows you to isolate the
trucks battery from the system to
prevent it from being drained
when using power tools. Or, for
extra power, the truck battery
can be added into the system
with the truck running to take
advantage of all batteries and
alternator.

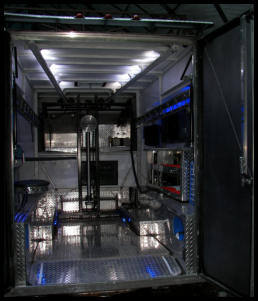

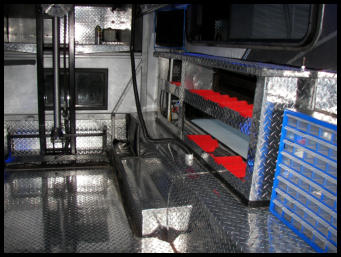

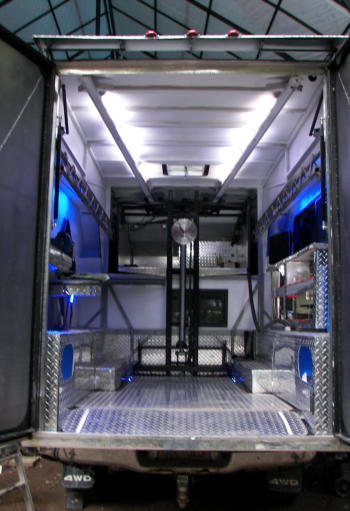

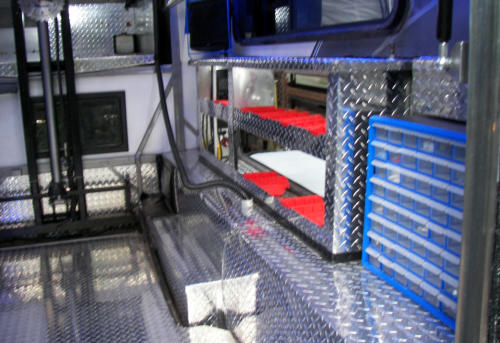

Here are some interior shots
showing the driver side wall,
passenger side wall, and towards
the front. Two lighting systems
can be use, one activated by
dome-light type door switches,
and another for manually
switched lights.
The interior is customizable with
shelving, cabinets, parts drawers,
workbench with a swing out stool,
hooks,etc. Inform us of any
special needs that we can build in
for you.
